● How far off the wall do Vanish Studio screens mount?
○ Vanish Studios sit 8 – 12 inches off the wall in order to protect the surfaces behind it.
● Can I mount the Vanish Studio to any surface?
○ The brackets that are supplied with Vanish Studios are universal; they can be mounted either by the wall or ceiling. To ensure the screen functions properly, please allow for 8”-12” of clearance from the back of the screen to what you are looking to protect.
○ Vanish Studios can be mounted to ceilings that are between 62” and 115”, if you have taller ceilings, 2 ft screen extensions are available to accommodate for additional height.
● How do I get power to the Vanish Studios?
○ Vanish Studios have a power cord on both sides of the screens. You can drill through your space to the closest standard 110W power outlets. If power is not available there are hand crank retractable options.
● I have no power source available where I plan to mount my Vanish Studio. What can I do?

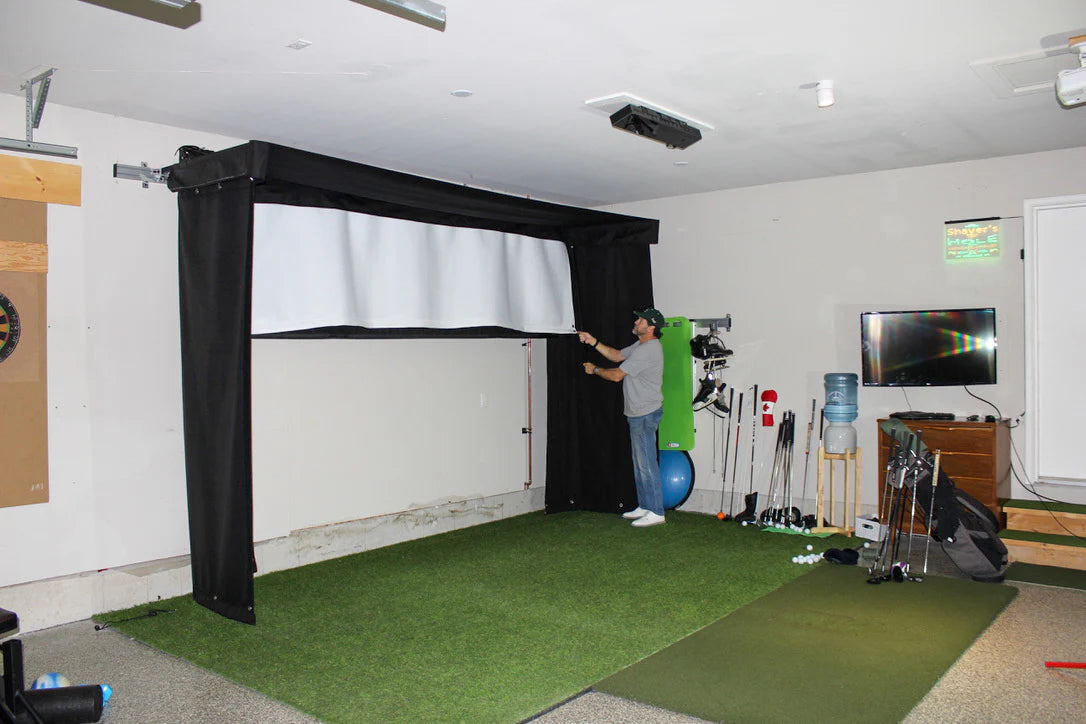

○ Manual, hand crank roll up options are available for Vanish Studios if power is not readily available. The hand crank versions come equipped with a handle crank system that conveniently rolls out of the way.

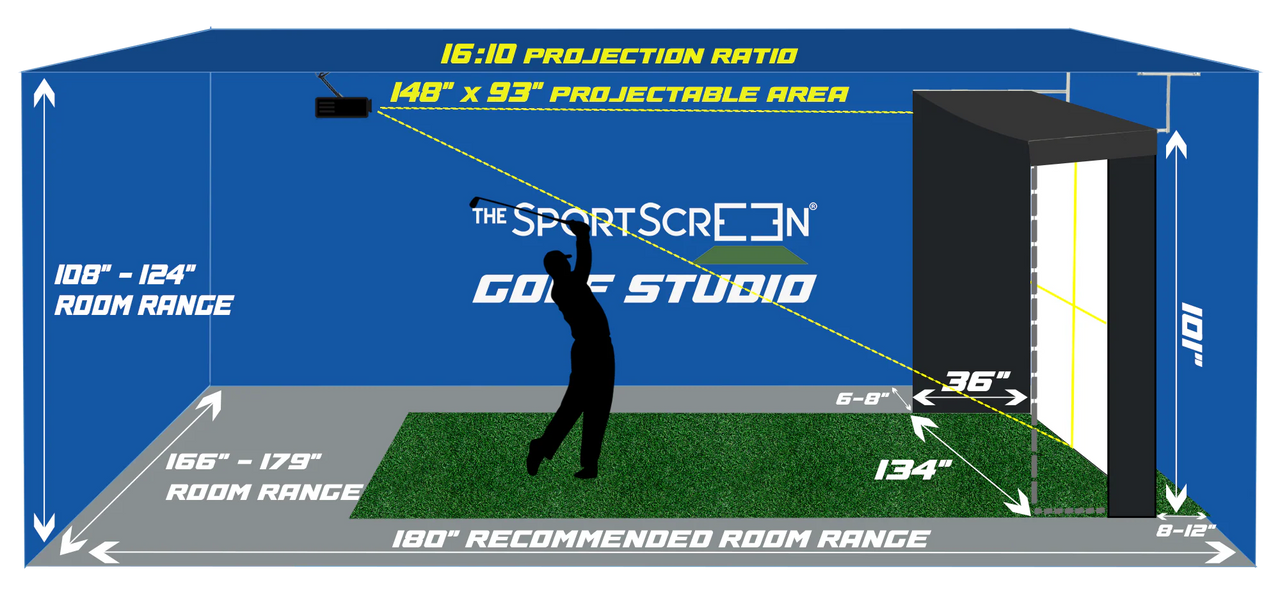

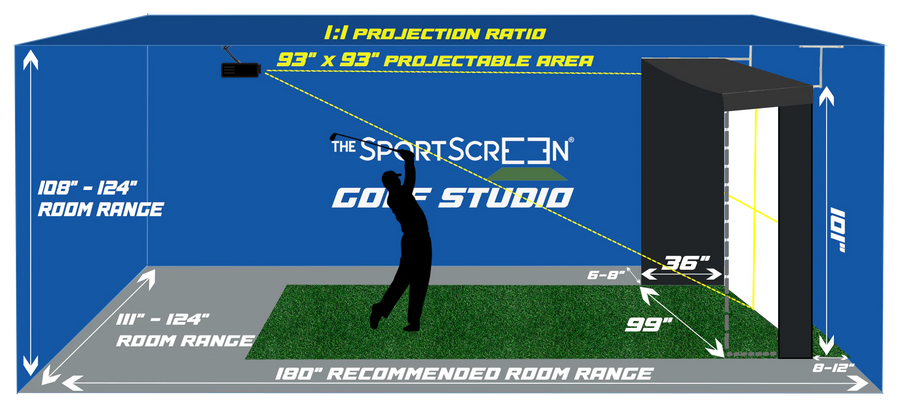

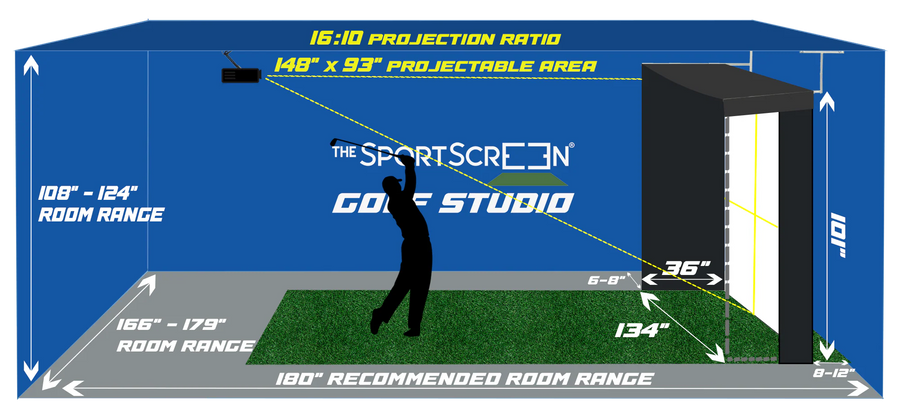

● What are the exact dimensions of the Vanish Studio models?

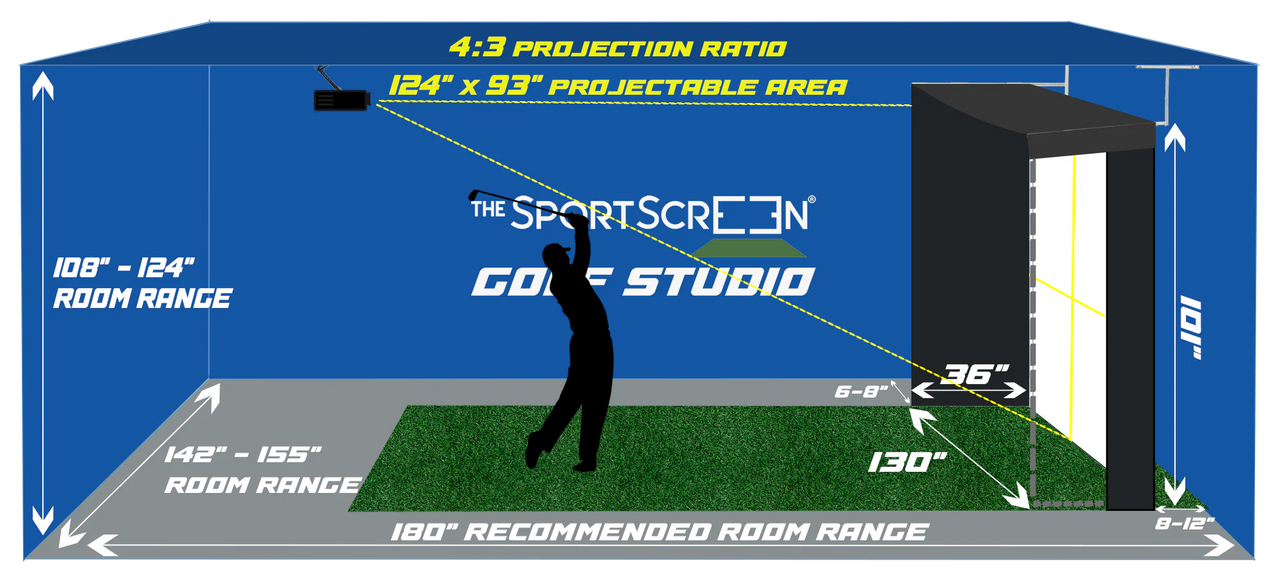

○ The Vanish 11 front screens have the following dimensions:
■ Unit width bracket to bracket (128.50 inches)
■ Screen Width (124.00 inches)
■ Screen height (138.00 inches)
■ Impact screen projectable height (91 inches)
○ The Vanish 11 side screens have the following dimensions:
■ Unit width bracket to bracket (74.25 inches)
■ Screen width (60.00 inches)
■ Screen height (138.00 inches)
○ The Vanish 13H have the following dimensions:
■ Unit width bracket to bracket (152.5 inches)
■ Unit width without brackets (149.5 inches)
■ Screen width (148.00 inches)
■ Screen height (138.00 inches)
■ Impact screen projectable height (107.5 inches)
○ The Vanish 13H side screens have the following dimensions:
■ Unit width bracket to bracket (74.25 inches)
■ Screen width (60.00 inches)
■ Screen height (138.00 inches)
○ The Vanish 16 have the following dimensions:
■ Unit width bracket to bracket (191.50 inches)
■ Screen width (187.00 inches)
■ Screen height (138.00 inches)
■ Impact screen projectable height (90 inches)
○ The Vanish 16 side screens have the following dimensions:
■ Unit width bracket to bracket (74.25 inches)
■ Screen width (60.00 inches)
■ Screen height (138.00 inches)
○ The Vanish 16H have the following dimensions:
■ Unit width bracket to bracket (191.5 inches)
■ Screen width (187.00 inches)
■ Screen height (138.00 inches)
■ Impact screen projectable height (102 inches)
○ The Vanish 16H side screens have the following dimensions:
■ Unit width bracket to bracket (74.25 inches)
■ Screen width (60 inches)
■ Screen height (138 inches)
All dimensions provided are the total measurements not mounting measurements.
