Trak18 Premium High-Contrast Golf Impact Screen – 4K-Ready, 250 MPH Rated

Frame Mounted Screens

Attaching your Trak18 Impact Screens to any truss system, whether freestanding or suspended, is a breeze using 6-Inch Black Ball Bungees or 9-Inch Black Ball Bungees. You can acquire them in any quantity you require.

Ensure you are Using the Correct Side

Your impact screen possesses distinct front and back sides, with the front side exclusively designed to endure the impact of real golf balls. The front side is the slightly smoother surface.

Aspect Ratio

We recommend choosing an impact screen to match your projector's aspect ratio. It's worth noting that Trak18 Impact Screens are often selected to suit the available space primarily, with projector image alignment being a secondary consideration. Opt for the factor that holds greater significance to you.

Aspect ratio pertains to the the relationship between a screen's width and height. Understanding your simulator's aspect ratio is crucial to ensure that your projected image adequately occupies the screen space. It's unnecessary to construct a screen that surpasses the height or width of your projected image's dimensions. Check out this guide for more information

How Far Away Should You Stand From Your Impact Screen?

To ensure the safety of both the golfer and the screen, we advise maintaining a distance of at least 10-12 feet from the screen.

Can you Iron or Steam a Golf Impact Screen?

To keep your screen smooth, the best approach is simply to let it hang. Mounted under tension on your frame (for example with our ball bungees), most wrinkles and fold marks will relax and disappear on their own over the first few days. If you would like to speed things up, you can lightly steam the screen to release stubborn wrinkles. Use a handheld garment steamer on a low setting, keep it moving, and work from the back of the material. Ironing, however, is not encouraged, as direct heat and pressure can risk damaging the screen. When you receive your screen, unpack it promptly and, if it must be stored, fold it loosely to minimize creasing.

Can You Use Your Impact Screen Outdoors?

Trak18 Golf Impact Screens are recommended for indoor use only.

What Fasteners Should You Use to Hang Your Golf Screen?

The majority of customers who purchase an impact screen also opt for ball bungees, available in lengths of 6 inches or 9 inches. Ensure the fastening is done in a manner that allows the screen or material some flexibility. For instance, refrain from securing the material directly through the grommet holes, as this impedes the necessary movement to absorb the impact of each golf ball, increasing the likelihood of ball rebound. Avoid over-tensioning the screen; a certain degree of movement must be permitted.

How Do You Install Ball Bungees?

In conjunction with reusable zip ties, Ball Bungees play a crucial role in fastening impact screens and enclosures to the frame. Designed with flexibility in mind, they afford you the convenience to add or remove ball bungees as required, enabling you to attain your desired level of tension.

1. Insert the loop end of the bungee through a grommet from the rear side of the screen.
2. Thread it through the grommet until the toggle ball contacts the back of the grommet.
3. Draw the cord over and around the frame or pipe.
4. Secure the cord onto the toggle ball to create a loop.

What Size Grommets Should You Use?

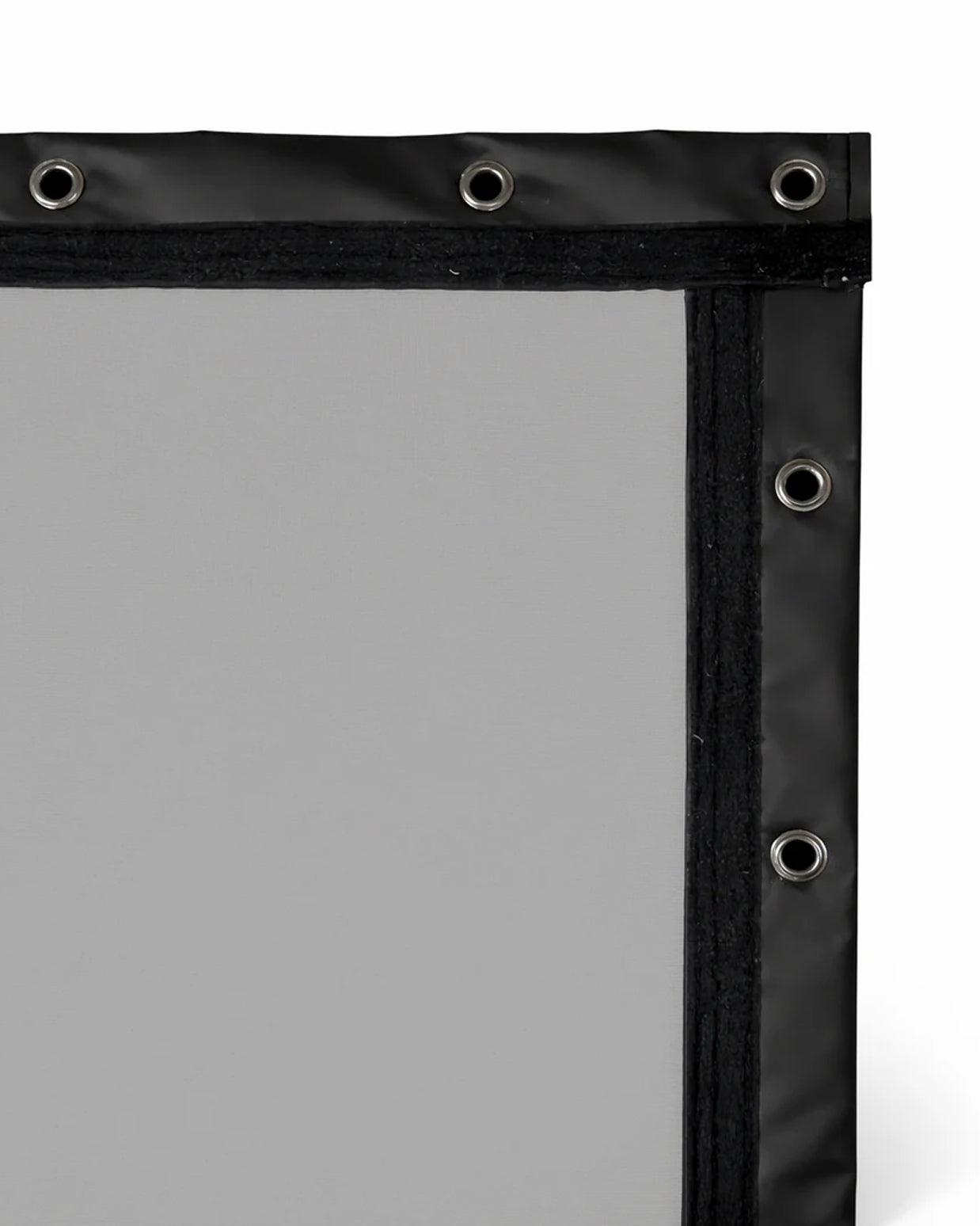

Trak18 grommets have an outer dimension of 3/4" and an inner dimension of 3/8".
