Raw Premium XL Impact Screen Material – 126″ Wide (Cut by the Foot)

Trak18 Premium XL Raw Impact Screen Material – 126″ Wide, Cut by the Linear Foot

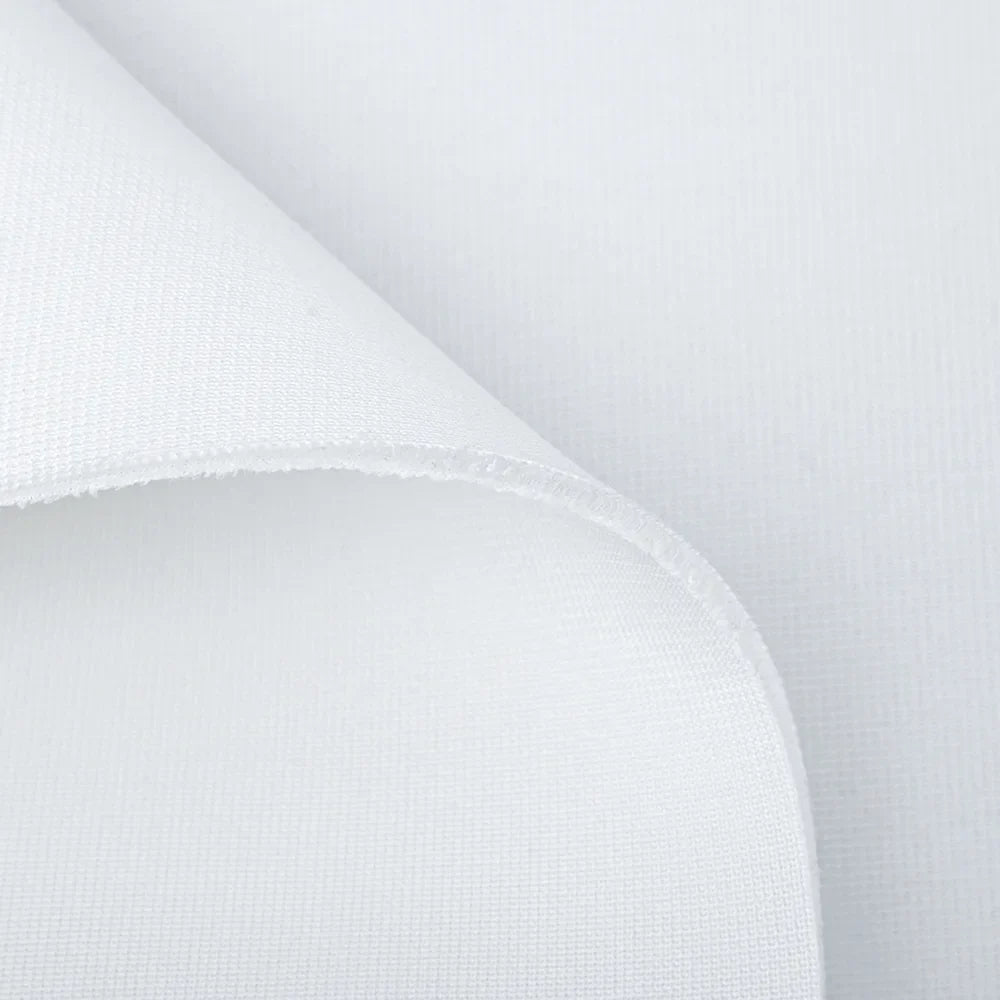

Build your golf simulator screen exactly to size with Trak18 Premium XL Raw Impact Screen Material — a heavier 3.5 mm multi-layer projection weave built for commercial and high-traffic bays, sold raw by the linear foot at the full 126″ (10.5′) roll width. It's the same fabric used in the finished Trak18 Premium XL Golf Impact Screen, just uncut so you can finish it your way. Speed-rated to 250 MPH, the thicker weave dissipates even more impact energy for quieter, longer-lasting play.

How to Order – Simple Linear-Foot Pricing

Set your length with the Linear Foot Selector above. Pricing is per linear foot, from 5 to 20 ft, cut as one continuous piece.

• Standard orientation: 126″ (10.5′) wide × your chosen length — e.g. 10 ft = 126″ W × 120″ H
• Rotated orientation: turn the material 90° for ultra-wide bays — e.g. 15 ft = 180″ W × 126″ H
• Custom lengths: order exactly what your enclosure needs

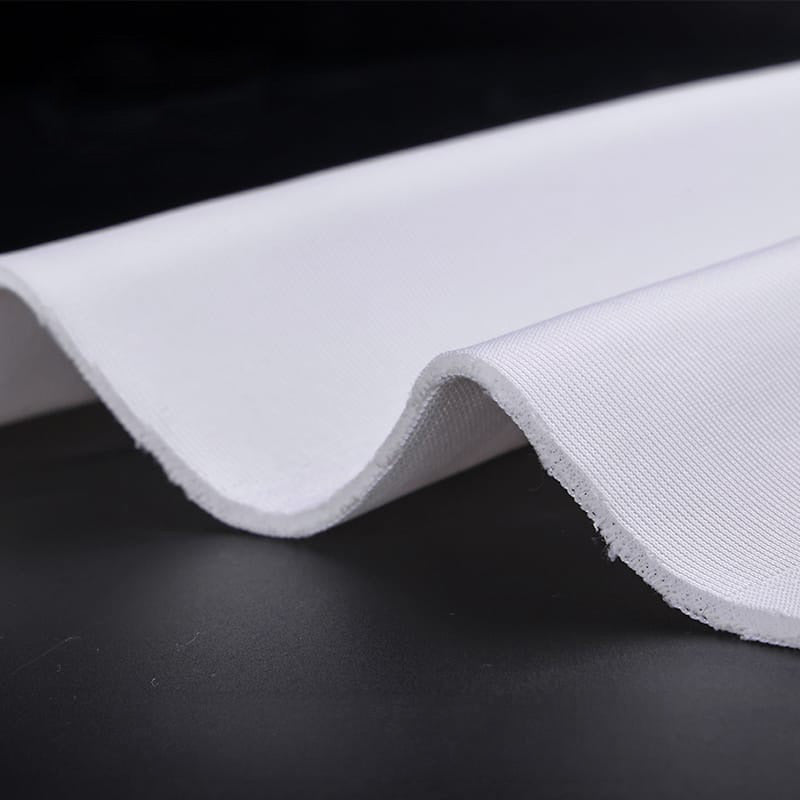

Engineered Multi-Layer Construction

• Heavier 3.5 mm weave dissipates more ball energy than a standard screen for quieter, longer-lasting impact
• Noise-dampening center layer softens ball impact for more enjoyable play
• UV-resistant surface won't fade under continuous projector light
• Weather-resistant for climate-controlled garages and dedicated simulator rooms
• Tear-resistant edges maintain integrity through thousands of high-velocity strikes

Raw Edges – Finish It Your Way

Shipped with no edge finishing, grommets, or pockets, giving fabricators and DIY builders complete control: hem, sew, grommet, Velcro, or mount to any frame. Want it ready to hang? See the finished Trak18 Premium XL Golf Impact Screen.

Edge / Production-Line Guidance

Faint production guide lines roughly 0.5″–1″ from each roll edge are a normal part of industrial weaving. Trim or hem at least 1″ inward on each side and position grommets at least 1.5″ from raw edges; effective projection width is approximately 124″ after trim.

Technical Specifications

• Material: 3.5 mm multi-layer polyester projection weave
• Roll width: 126″ (10.5′) — full, seamless width
• Sold by: linear foot (5–20 ft), continuous cut
• Speed rating: 250 MPH golf-ball tested
• Acoustics: noise-dampening center layer
• Durability: UV-, weather-, and tear-resistant
• Projection: HD, 4K, standard- and ultra-short-throw compatible
• Edge style: raw / unfinished (finished screens available)
• Use: commercial & high-traffic indoor golf simulators, custom enclosures
